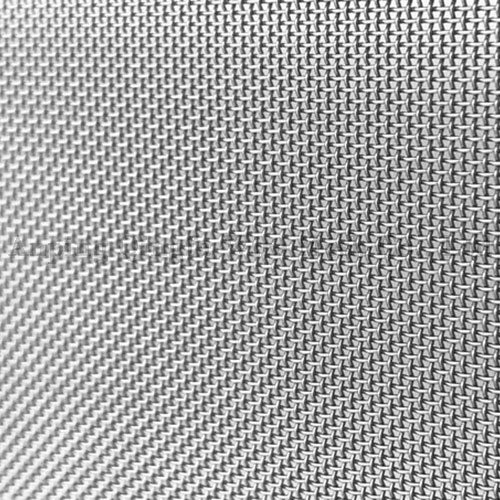

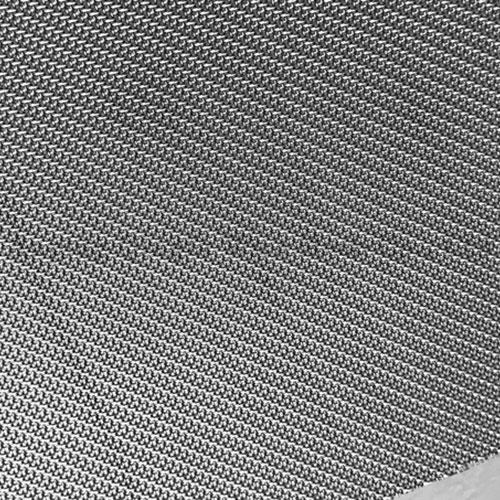

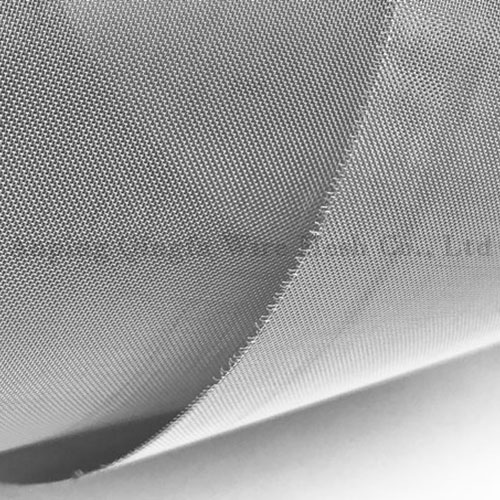

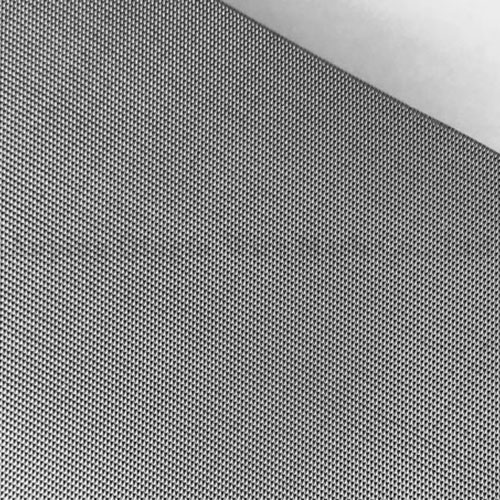

Filtration Mesh

Stainless steel woven wire mesh is commonly used for the manufacturing of filters in the food and beverage industry.

Stainless steel is a superior material used in food processing. It is the most commonly found material in commercial kitchens and food processing plants.

Stainless steel woven mesh has excellent properties which make it an ideal material for filtration:

Heat resistance

Ease of fabrication

Clean-ability and hygiene properties

Stocked Product Specifications ready for same day dispatch

Mesh: 500 inch per lineal inch (fine mesh) to 1 inch per lineal to (coarse mesh)

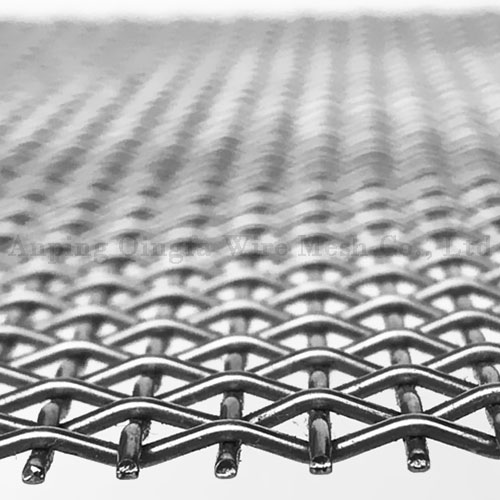

Weave: Plain, Twill, Lock Crimp and Inter Crimp Weave.

Grade: 304 and 316

Length x Width: 2m Rolls/sheets x1245mm width, 10m length x1550mesh width rolls,30m length x1245mm,1550mm and 1830mm width rolls.

Facebook LinkedIn

Details
Material
Specification
Applications

Stainless steel woven wire mesh is commonly used for the manufacturing of filters in the food and beverage industry.

Stainless steel is a superior material used in food processing. It is the most commonly found material in commercial kitchens and food processing plants.

Stainless steel woven mesh has excellent properties which make it an ideal material for filtration:

Heat resistance

Ease of fabrication

Clean-ability and hygiene properties

Stocked Product Specifications ready for same day dispatch

Mesh: 500 inch per lineal inch (fine mesh) to 1 inch per lineal to (coarse mesh)

Weave: Plain, Twill, Lock Crimp and Inter Crimp Weave.

Grade: 304 and 316

Length x Width: 2m Rolls/sheets x1245mm width, 10m length x1550mesh width rolls,30m length x1245mm,1550mm and 1830mm width rolls.

Finish: Mill also known as off the machine.

Minimum Sale Quantities:

915mm, 1220mm & 1245mm width – 2 lineal meters. Then sold in multiples of 1 meter.

1550mm width – 10 lineal meters. Then sold in multiples of 10 meters.

Sold 30m roll only.

Woven mesh regularly used in industry 30 meters rolls

Product code	Mesh	SWG	Aperture (mm)	Wire Diameter (mm)	Width (mm)	Weight (kg)	Approx. open %	Micron
QF-500	500	50	0.026	0.025	1220	6	26	26
QF-400	400	49	0.034	0.03	1220	7	28	34
QF-325	325	48.5	0.043	0.035	1220	7	30	43
QF-300	300	48	0.045	0.04	1220	9	28	45
QF-250	250	48	0.062	0.04	1220	7	37	62
QF-200	200	47	0.077	0.05	1220	9	37	77
QF-180	180	47	0.091	0.05	1220	8	42	91
QF-150	150	45.5	0.104	0.065	1550	15	38	104
QF-120	120	44	0.132	0.08	1220	14	39	132
QF-100	100	42	0.154	0.10	1245	19	37	154
QF-80	80	39	0.193	0.125	1550	30	37	193
QF-70	70	38	0.223	0.14	1550	33	38	223
QF-60	60	37.5	0.263	0.16	1245	29	39	263
QF-50	50	36.5	0.318	0.19	1550	43	39	318
QF-40	40	34	0.415	0.22	1550	46	43	415
QF-30	30	30	0.547	0.30	1550	64	42	547
QF-24	24	30	0.758	0.30	1550	52	51	758
QF-20	20	26	0.820	0.45	1550	97	42	820
QF-18	18	24	0.850	0.56	1550	135	36	850
QF-20	20	28	0.920	0.35	1245	47	52	920
	16	24	1.03	0.56	1550	120	42
	16	26	1.14	0.45	1550	77	51
	16	28	1.24	0.35	1550	47	61
	14	24	1.25	0.56	1245	84	48
	11	19	1.31	1.00	1550	262	32
	12	22	1.41	0.71	1550	144	44
	12	24	1.56	0.56	1245	72	54
	10	20	1.64	0.90	1500	187	42
	12	26	1.67	0.45	1245	46	62
	12	26	1.67	0.45	1830	68	62
	9	20	1.92	0.90	1550	174	46
	8	18	1.975	1.20	1550	275	39
	10	24	1.98	0.56	1550	75	61
	10	26	2.09	0.45	1220	38	68
	8	20	2.28	0.90	1550	154	51
	6	18	3.03	1.20	1245	166	51
	6	20	3.33	0.90	1245	93	62
	5	16	3.48	1.60	1550	305	47
	5	20	4.18	0.90	1550	83	68
	4	16	4.75	1.60	1550	244	56
	4	18	5.15	1.20	1550	137	66
	3	14	6.47	2.00	1550	286	58
	3	16	6.87	1.60	1245	147	66
	3	16	6.87	1.60	1550	147	66
	2	14	10.7	2.00	1245	153	71
	2	16	11.1	1.60	1245	98	76
	1.6	10	12.88	3.00	1245	276	66
	3/4	12	16.5	2.50	1245	160	75
	1	10	22.25	3.15	1245	190	77
