Stainless Steel Rope Mesh:
Material :304, 304L, 316, 316L,
Structure: 7x7 rope, 7x19 rope, etc.
Rope diameter : 1.2 mm, 1.6 mm, 2.0 mm, 2.4 mm, 3.2 mm
Aperture :20 mm x 20 mm, 30 mm x 30 mm, 40 mm x 40 mm, 50 mm x 50 mm, 60 mm x 60 mm,
76 mm x 76 mm, 90 mm x 90 mm, 102 mm x 102 mm, 120 mm x 120,etc

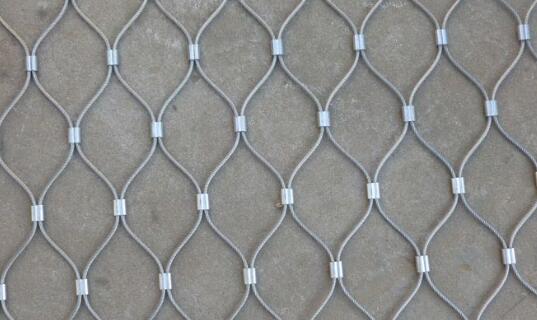

Stainless Steel Wire Rope Woven Mesh
The stainless steel wire rope woven mesh is rhombus mesh, has excellent flexible performance, virtually indestructible, most impacting-resistant and breaking resistant force, most resisting rain, snow, hurricane.
The stainless steel wire rope woven mesh material is used high quality stainless steel wire cable, the stainless steel grade includes AISI 304 or AISI 316 material group. The structures of the stainless steel wire cable have 7 x 7 and 7 x 19. The standard stainless steel wire rope woven mesh diameter includes 1/8", 3/32", 1/16", and 3/64", the standard mesh opening size includes 1" x 1", 1-1/2" x 1-1/2", 2" x 2", 3" x 3" and 4" x 4".The standard mesh angle is 90°.
